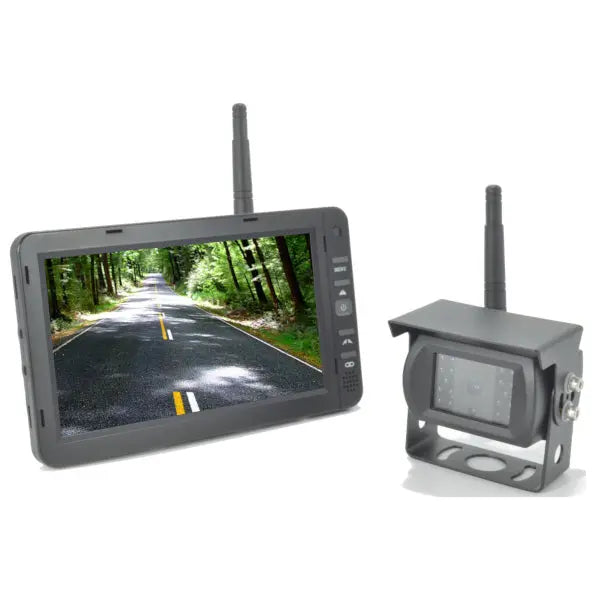

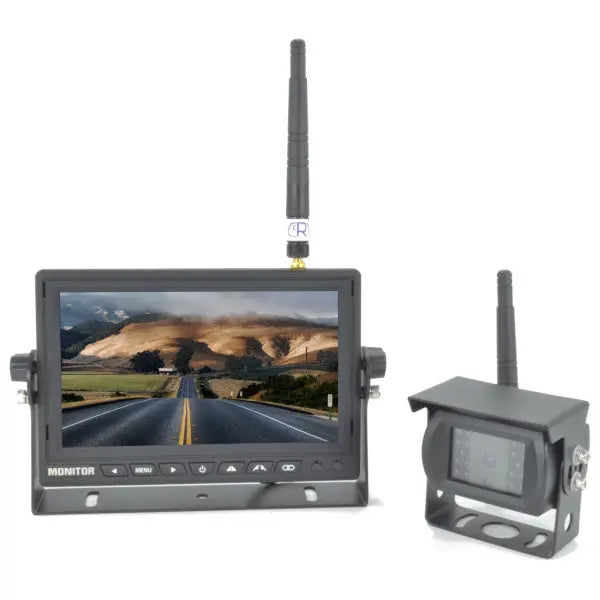

HD Wireless Backup Camera System for Caravans

Revolutionizing Wireless Reversing Cameras

Wireless reversing cameras have historically been plagued by poor picture quality, frequent dropouts, and constant interference, often forcing users to revert to standard wired systems for basic functionality. But those days are over.

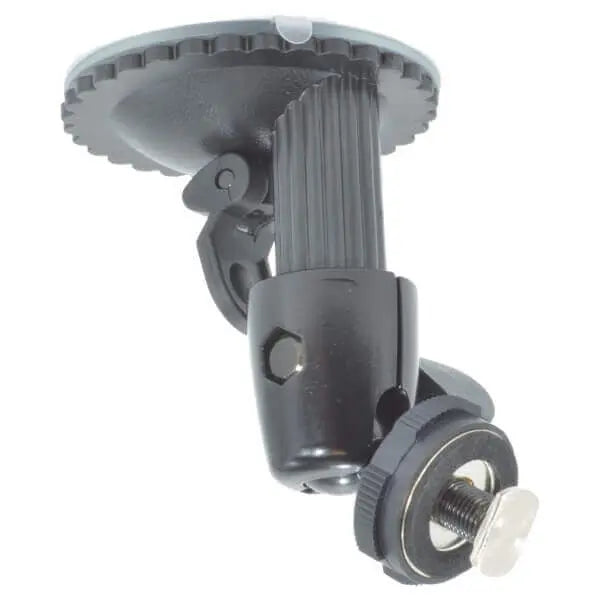

Introducing the HD Wireless Backup Camera System - combining convenience, easy installation, and impeccable image quality. The 7" IPS-LCD monitor connects effortlessly to your cigarette lighter and can be mounted using the included suction cup. The camera setup requires only a simple positive and earth connection, making installation a breeze.

This system features a digital wireless connection that eliminates interference, ensuring crystal-clear visuals at all times. The 120° wide-angle camera, equipped with 18 infrared night vision lights, guarantees visibility even in the darkest conditions. With an IP68 rating, this camera system is robust, reliable, shock-resistant, and comes with a full-year warranty.

If you haven’t experienced the benefits of RVview High Definition yet, now is the perfect time to upgrade.

Key Features:

• 7” 2.4GHz Wireless Monitor: Provides a clear and vibrant display.
• 2.4 GHz Wireless Rear Camera: Ensures a strong, interference-free connection.
• Multi-Camera Support: Connect up to 4 cameras for comprehensive coverage.
• Automatic Activation: Can be wired to activate with reverse gear.
• Versatile Compatibility: Suitable for all vehicles including cars, trucks, 4x4s, and agricultural machinery.
• Long Range: Approximately 100m range depending on environmental conditions.
• Removable Sun Shade Hood: Improves visibility in bright conditions.

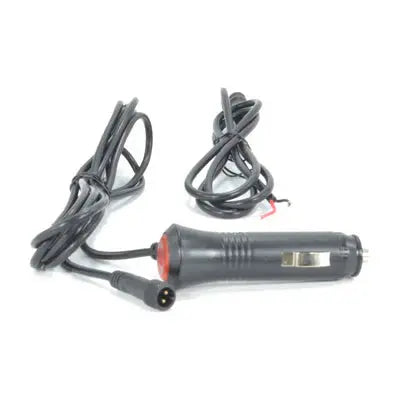

• Easy Power Connection: Comes with a cigarette lighter plug.

Monitor Specifications:

• Display: 7” with 1024 x 600 pixel resolution
• Aspect Ratio: 16:9
• Backlight: 500cd/m2
• Dimensions: 180 x 120 x 23mm (excluding bracket/antenna)
• Power: 12 – 24 Volt with a metal U bracket mount
• Additional Features: Selectable parking guidelines, removable sunshade

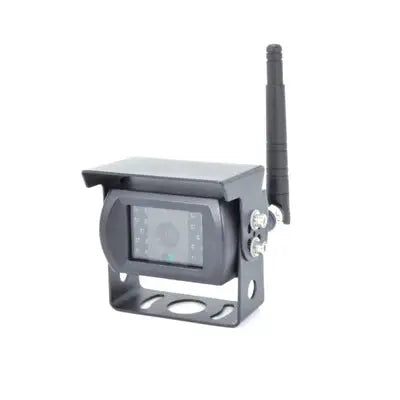

Camera Specifications:

• Sensor: Colour IR CMOS
• Resolution: 2 Megapixel (Full HD 1080P)
• Operating Frequency: 2.4 GHz
• Field of View: 120-degree
• Night Vision: 18 IR LEDs
• Operating Temperature: -20 to 70 degrees Celsius
• Dimensions: 74 x 45 x 56mm
• Power Consumption: Less than 200mA
• Durability: IP68 dustproof and waterproof rating

How To Install

Step 1: Install the Monitor

1. Mount: Attach the suction cup to the monitor and place it on your windshield or dashboard.
2. Power: Plug the monitor into your vehicle’s cigarette lighter socket.

Step 2: Install the Camera

1. Mount: Secure the camera above or near the license plate using the provided screws.
2. Power: Connect the camera to the reverse light's positive and earth wires.

Step 3: Test and Adjust

1. Test: Shift your vehicle into reverse to check the camera feed on the monitor.
2. Adjust: Shift your vehicle into reverse to check the camera feed on the monitor.

Read Installation Article (Click Here)

Upgrade your caravan with our state-of-the-art HD Wireless Backup Camera System and experience the ultimate in convenience and safety.
